working7 全量功能实际执行验证报告
生成时间：2026-06-28T00:28:38.507Z job_id：w7full-20260628002838-518bf522 report_id：report-w7full-20260628002838-518bf522 目标页面：http://127.0.0.1:41281/web-rtcp-5axis-sim-plan/app/index.html 总体结果：PASS
我验证的范围
我在真实 Chromium 页面中逐项点击并验证主界面按钮、右侧全班按钮、程序执行、刀具预览、刀具实时执行路径、G-code 执行过程、机床轴值、倍率、主轴冷却、会话和诊断边界。
总体验收
| 检查项 | 结果 | 证据 |
|---|---|---|
| 所有主界面区域存在 | PASS | {"titlebar":true,"preview":true,"dro":true,"gcode":true,"status-sidebar":true,"info-tabs":true,"override":true,"spindle-coolant":true,"bottom-controls":true} |
| canvas 非空且 WebGL ready | PASS | 01-loaded-inventory:0.7801, 02-initial-run-blocked:0.7801, 03-powered-homed:0.7801, 04-auto-right-panel:0.7801, 05-right-sidebar-all-states:0.7801, 06-profile-xyzbc:0.7802, 07-preview-buttons:0.7887, 08-linuxcnc-source-loaded:0.7893, 09-open-file-loaded:0.7784, 10-run-ready:0.7784, 11-run-realtime-path:0.7789, 12-pause-resume-step:0.7787, 13-stop-idle:0.7787, 14-manual-jog-axis-values:0.7787, 15-mdi-execution:0.7812, 16-overrides-hal:0.7814, 17-spindle-coolant:0.7814, 18-session-fullscreen:0.7814, 19-diagnostics-audit:0.7814 |
| 按钮库存包含核心 action | PASS | missing= |
| 核心按钮均执行验证 | PASS | missing= |
| 未发生页面异常 | PASS | - |
| 所有 action 断言通过 | PASS | - |
按钮执行矩阵

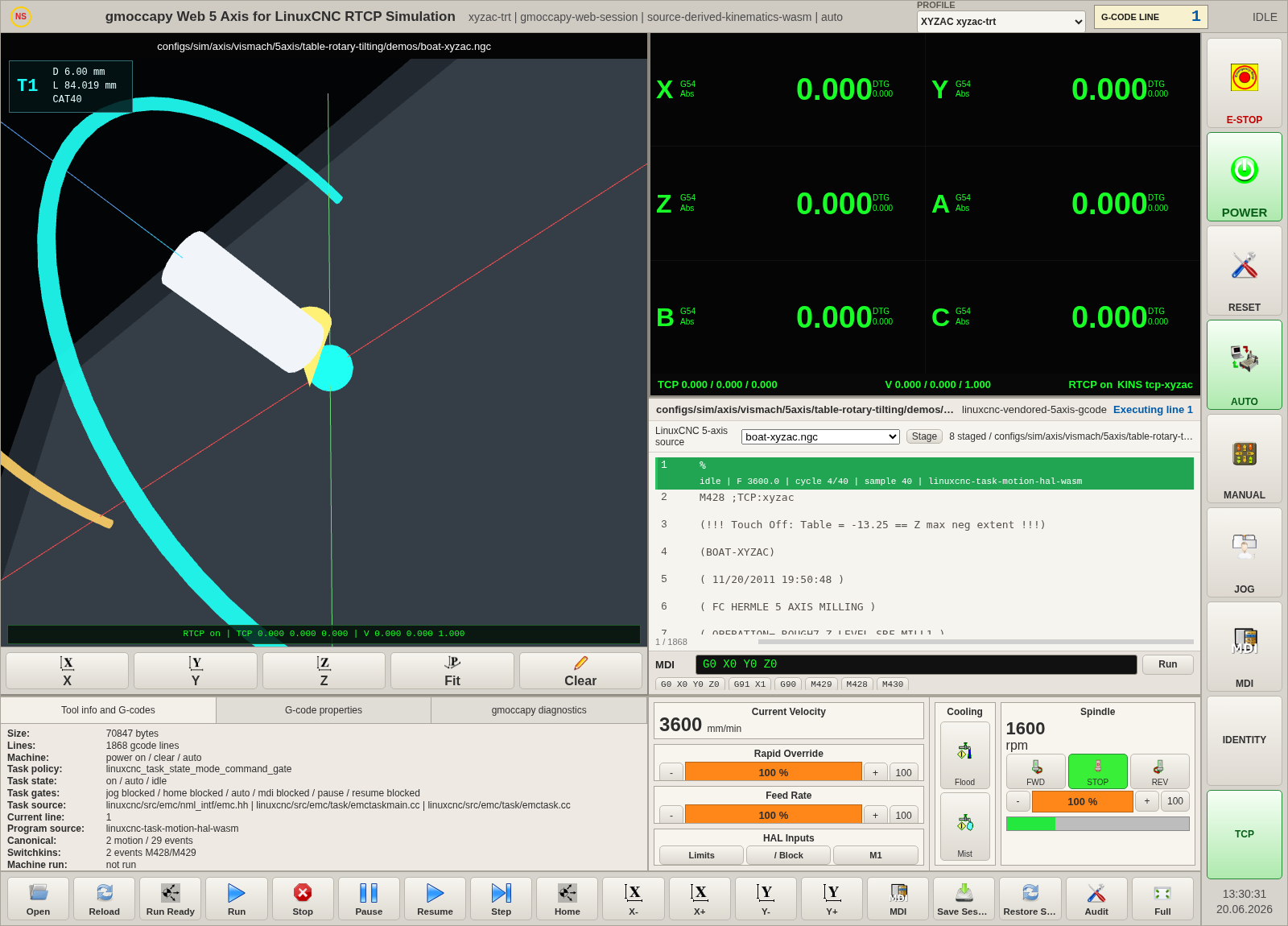

| action | 我执行的操作 | 结果 | 关键状态变化 |
|---|---|---|---|
| RUN | 未上电直接 RUN 应被门禁拦截 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":false,"estopActive":false,"taskState":"estop-reset","mode":"manual","allHomed":false,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro |
| mode-auto | 未上电 AUTO 应被门禁拦截 | PASS | {"exists":true,"tagName":"BUTTON","disabled":true,"active":"false","commandReady":"false","ariaDisabled":"true","title":"mode blocked: machine must be on before AUTO","label":"AUTO","iconName":"mode_auto_inactive","iconVariant":"inactive","gmoccapyButtonId":"rbt_auto","nativePanel":"right","nativeButtonIndex":"4","halPin":"gmoccapy.v-button.button-4"} |
| mode-mdi | 未上电 MDI 应被门禁拦截 | PASS | {"exists":true,"tagName":"BUTTON","disabled":true,"active":"false","commandReady":"false","ariaDisabled":"true","title":"mode blocked: machine must be on before MDI","label":"MDI","iconName":"mode_mdi_inactive","iconVariant":"inactive","gmoccapyButtonId":"rbt_mdi","nativePanel":"right","nativeButtonIndex":"3","halPin":"gmoccapy.v-button.button-3"} |
| spindle-forward | 未上电主轴正转应被门禁拦截 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":false,"estopActive":false,"taskState":"estop-reset","mode":"manual","allHomed":false,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro" |
| toggle-mist | 未上电冷却应被门禁拦截 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":false,"estopActive":false,"taskState":"estop-reset","mode":"manual","allHomed":false,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro" |
| power | POWER 上电 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":false,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":0 |
| HOME | HOME 回零 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0},"dro":{"x":43 |
| mode-auto | AUTO 模式 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0 |
| mode-manual | MANUAL 模式 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y" |
| mode-jog | JOG 入口归入 MANUAL 点动页 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y" |
| mode-mdi | MDI 模式 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"mdi","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"mdi","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0," |
| mode-manual | 返回 MANUAL | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":0, |
| kins-tcp | 右侧 TCP 打开 RTCP | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y" |
| kins-identity | 右侧 IDENTITY 关闭 RTCP | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y" |
| estop | E-STOP 急停 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"estopped","activeLine":1,"machine":{"powerOn":false,"estopActive":true,"taskState":"estop","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0 |
| power | 急停后 POWER 被阻止 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"estopped","activeLine":1,"machine":{"powerOn":false,"estopActive":true,"taskState":"estop","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0 |
| reset | RESET 清除急停 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":false,"estopActive":false,"taskState":"estop-reset","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y |
| power | RESET 后重新上电 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":0, |
| HOME | RESET 后重新回零 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0},"dro":{"x":43 |
| select-profile | 切换到 xyzbc-trt 轮廓 | PASS | {"machineProfile":"xyzbc-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzbc_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0, |
| select-profile | 切换到 reference-only gmoccapy-xyzab | PASS | {"machineProfile":"gmoccapy-xyzab","activeProgram":"linuxcnc/nc_files/3D_Chips.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"tcpPose":{"x":0," |
| kins-tcp | reference-only profile 的 TCP 禁用 | PASS | {"before":{"exists":true,"tagName":"BUTTON","disabled":true,"active":"false","commandReady":null,"ariaDisabled":null,"title":"gmoccapy-xyzab is trivkins reference only","label":"TCP","iconName":null,"iconVariant":null,"gmoccapyButtonId":null,"nativePanel":null,"nativeButtonIndex":null,"halPin":null},"after":{"exists":true,"tagName":"BUTTON","disabled":true,"active":"true","commandReady":null,"ariaDisabled":null,"title":"gmoccapy-xyzab is trivkins reference only","label":"TCP","iconName":null,"ic |
| select-profile | 切回 xyzac-trt 轮廓 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0, |

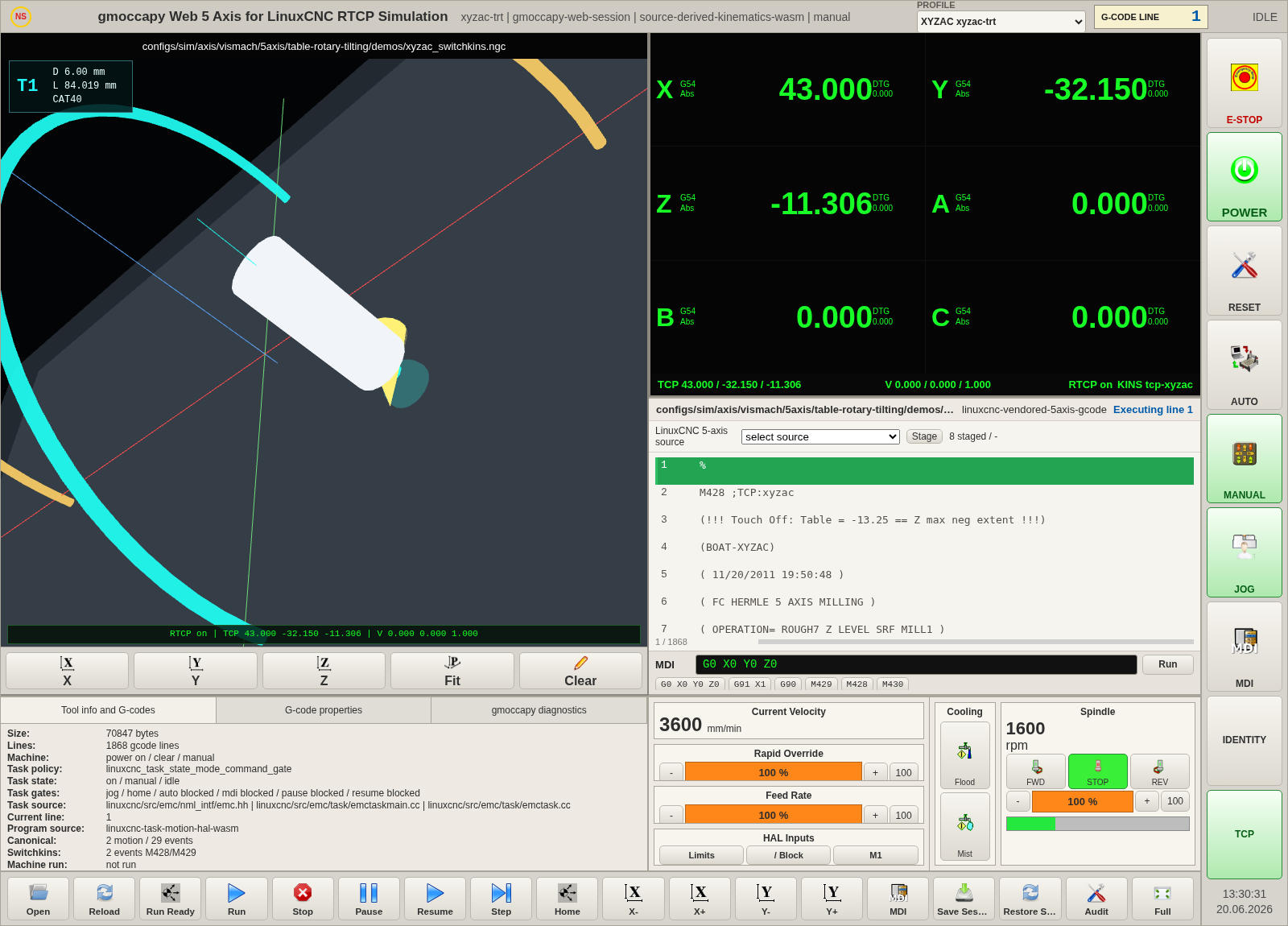

| view-x | 预览 X 视图 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x" |
| view-y | 预览 Y 视图 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x" |
| view-z | 预览 Z 视图 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x" |
| reset-view | 预览 Fit/复位视图 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x" |
| clear-preview | 清除刀路预览 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":0,"a":0,"b":0,"c":0},"dro":{"x" |
| RELOAD | Reload 恢复预览路径 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0 |
| stage-linuxcnc-sources | Stage LinuxCNC source | PASS | {"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzac_switchkins.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0},"dro":{ |

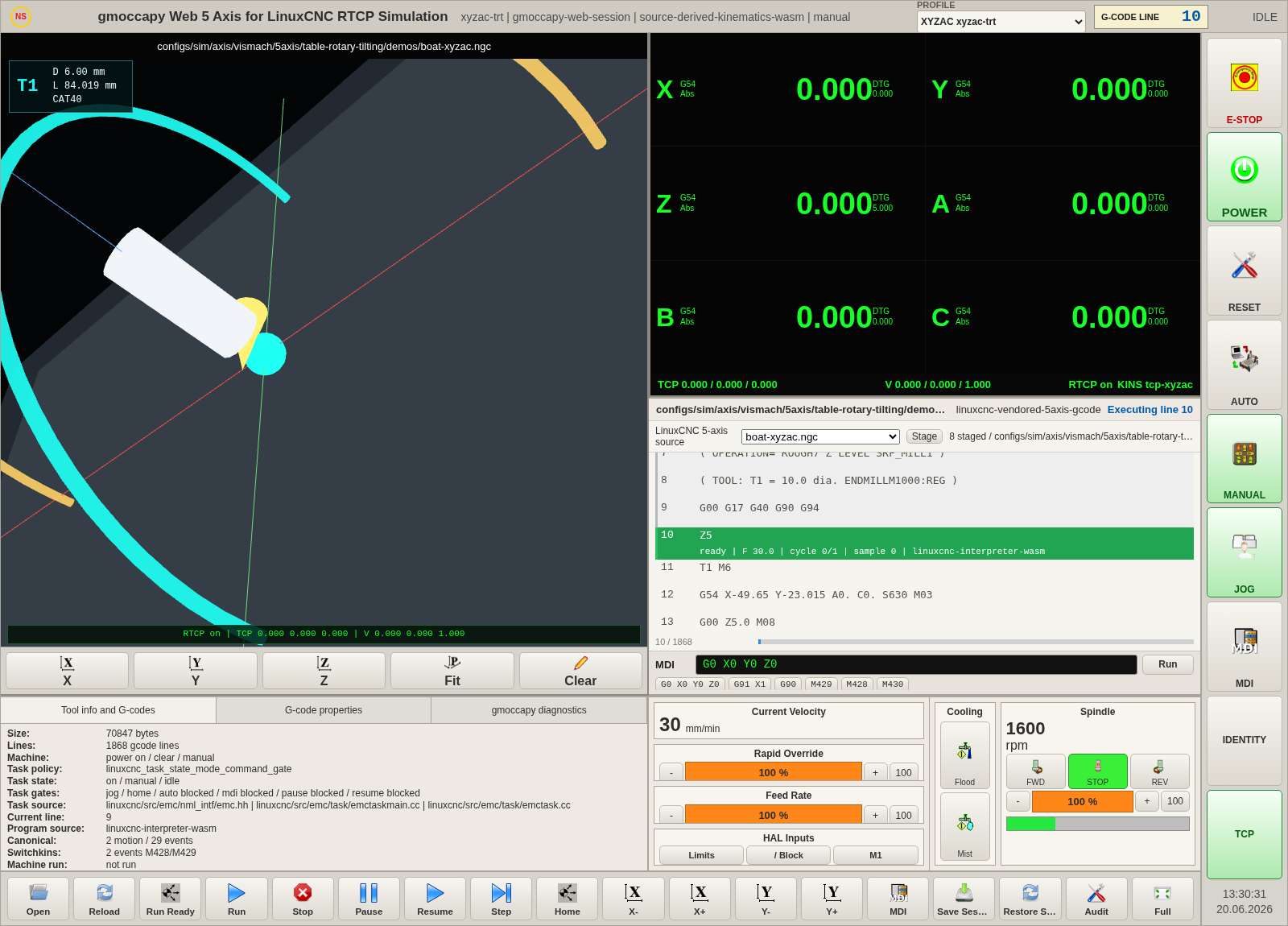

| select-linuxcnc-gcode-source | 选择第一个 LinuxCNC 5-axis G-code source | PASS | {"sourceRel":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","state":{"machineProfile":"xyzac-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/boat-xyzac.ngc","programSource":"linuxcnc-vendored-5axis-gcode","programExecutionSourceMode":"linuxcnc-interpreter-wasm","runState":"idle","activeLine":9,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiComman |

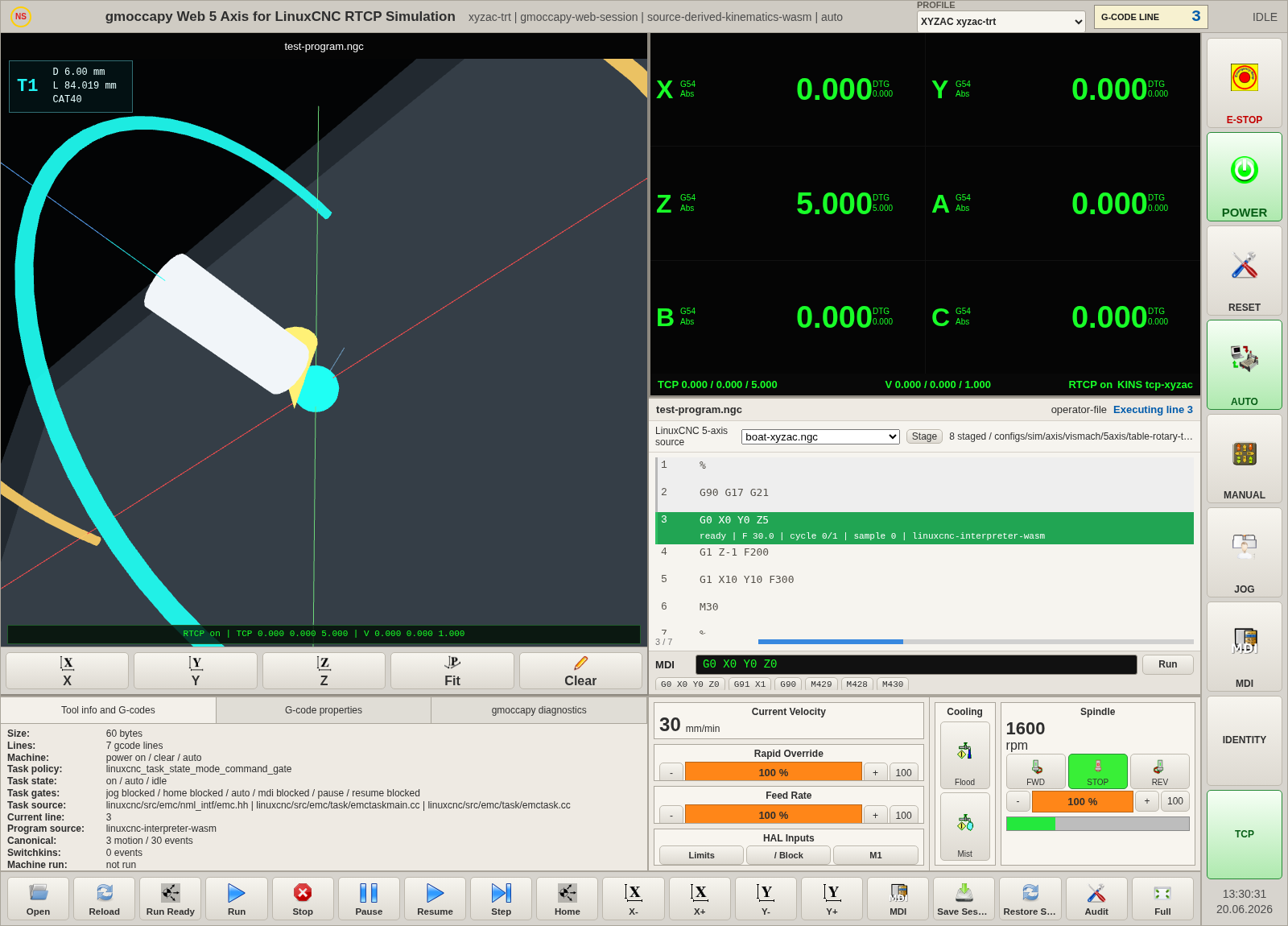

| OPEN | Open 上传本地 G-code fixture | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"idle","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0},"dro":{"x":43,"y":-32.15,"z":-11.306,"a":0,"b":0,"c":0},"tcpPose":{"x":43,"y": |

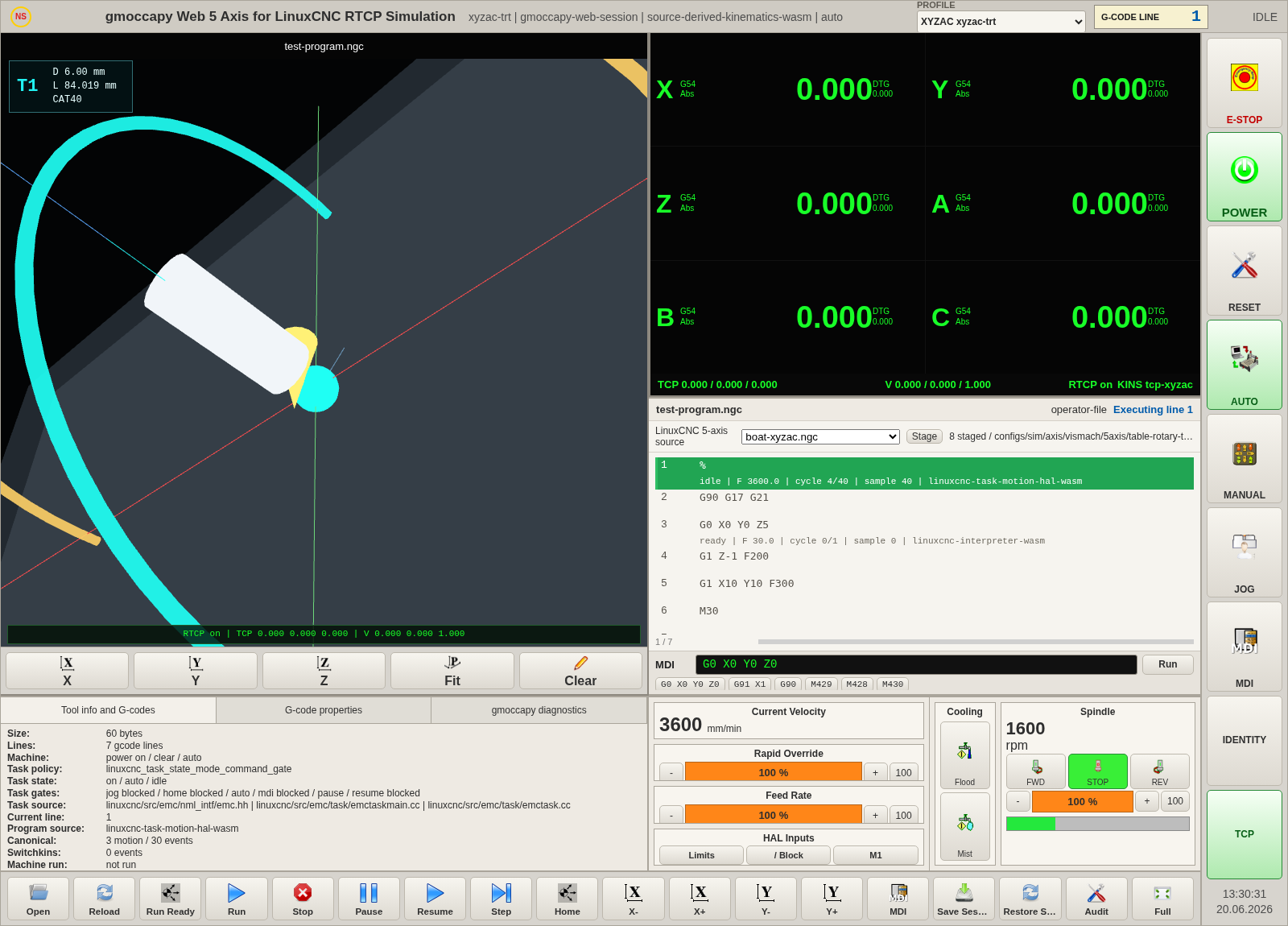

| RUN_READY | Run Ready 一键准备 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-interpreter-wasm","runState":"idle","activeLine":3,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":5,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":5,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":5,"a":0,"b":0,"c":0},"kinsType": |
| RUN | RUN 执行程序 | PASS | {"state":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"running","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"reading","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":3.67183,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":3.67183,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":3 |
| PAUSE | PAUSE 暂停 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"paused","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"paused","taskPaused":true,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":2.34366,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":2.34366,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":2.34366,"a":0 |
| RESUME | RESUME 继续 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"running","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"reading","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":2.31046,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":2.31046,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":2.31046,"a |
| PAUSE | STEP 前暂停 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"paused","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"paused","taskPaused":true,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.97842,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.97842,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.97842,"a":0 |
| STEP | STEP 单步 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"paused","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"paused","taskPaused":true,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.97842,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.97842,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.9 |
| STOP | STOP 停止 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"auto","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a":0 |
| mode-manual | 切到 MANUAL 准备点动 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a" |

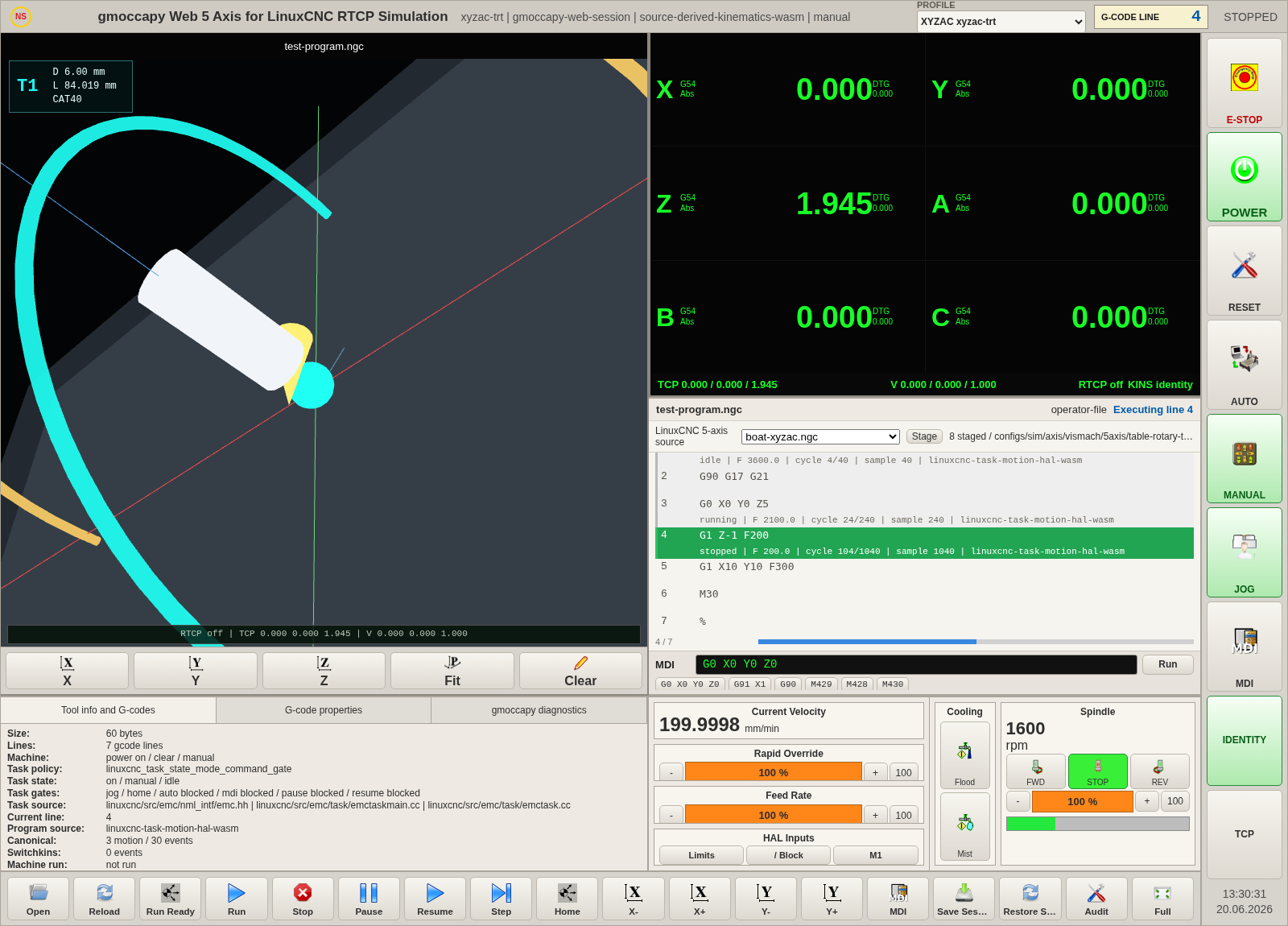

| JOG_X_NEG | JOG_X_NEG 点动 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1 |
| JOG_X_POS | JOG_X_POS 点动 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":-1,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":-1,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":-1,"y":0,"z |
| JOG_Y_NEG | JOG_Y_NEG 点动 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1 |
| JOG_Y_POS | JOG_Y_POS 点动 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":-1,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":-1,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":-1,"z |
| mode-mdi | 切到 MDI | PASS | {"machineProfile":"xyzac-trt","activeProgram":"test-program.ngc","programSource":"operator-file","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"mdi","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G0 X0 Y0 Z0"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a":0, |

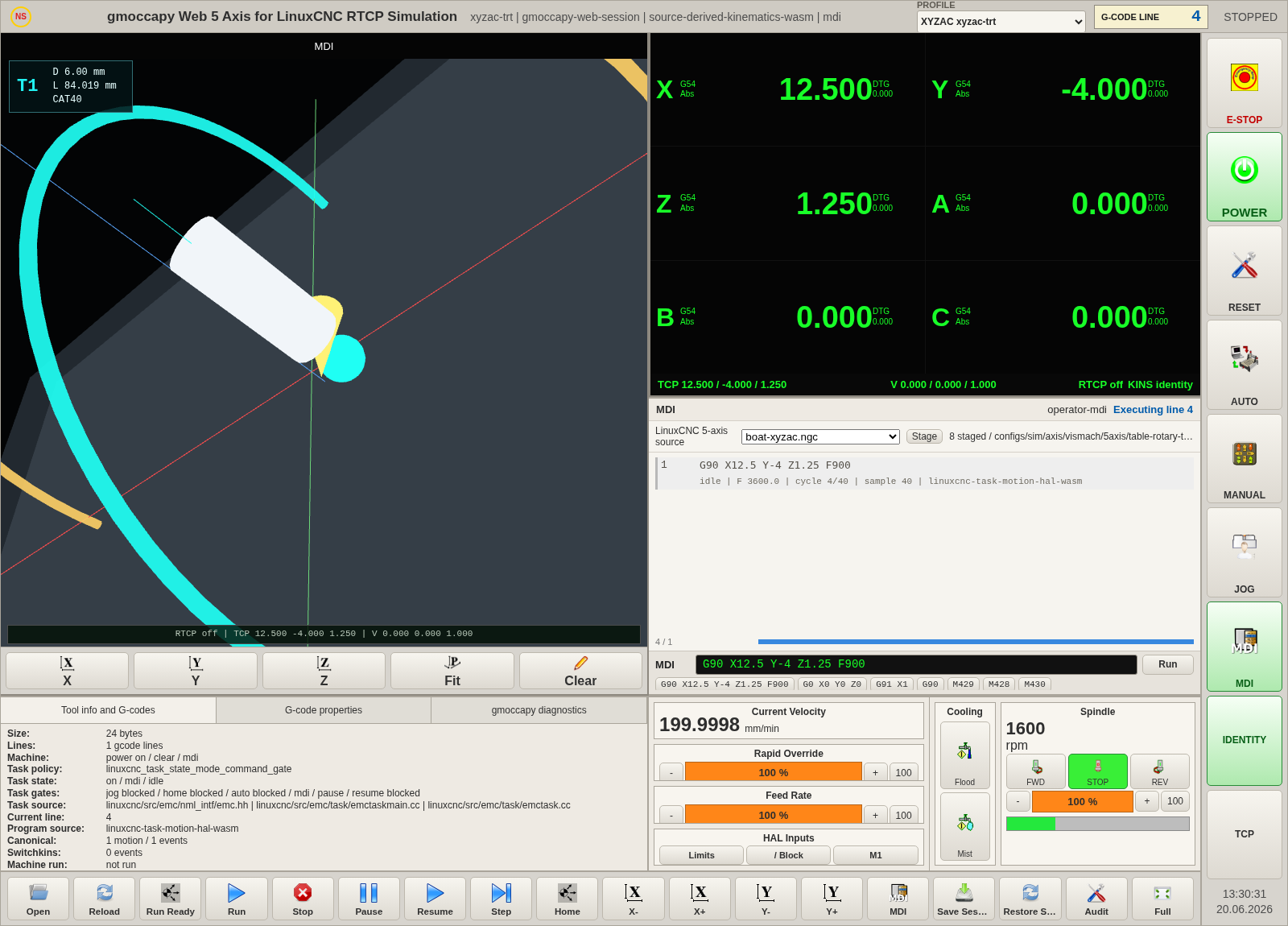

| mdi-submit | MDI 输入并执行 G90 X12.5 Y-4 Z1.25 F900 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"operator-mdi","runState":"mdi","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"mdi","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"dro":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"tcpPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"kinsT |
| mdi-history | MDI 历史快捷按钮 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"operator-mdi","runState":"mdi","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"mdi","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"dro":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"tcpPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"kinsT |
| MDI_RUN | 底部 MDI_RUN 执行当前 MDI | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"operator-mdi","runState":"mdi","activeLine":1,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"mdi","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"dro":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"tcpPose":{"x":12.5,"y":-4,"z":1.25,"a":0,"b":0,"c":0},"kinsT |
| mode-manual | 返回 MANUAL 准备倍率 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| rapid-override-down | Rapid - | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| rapid-override-up | Rapid + | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| rapid-override-reset | Rapid 100 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |

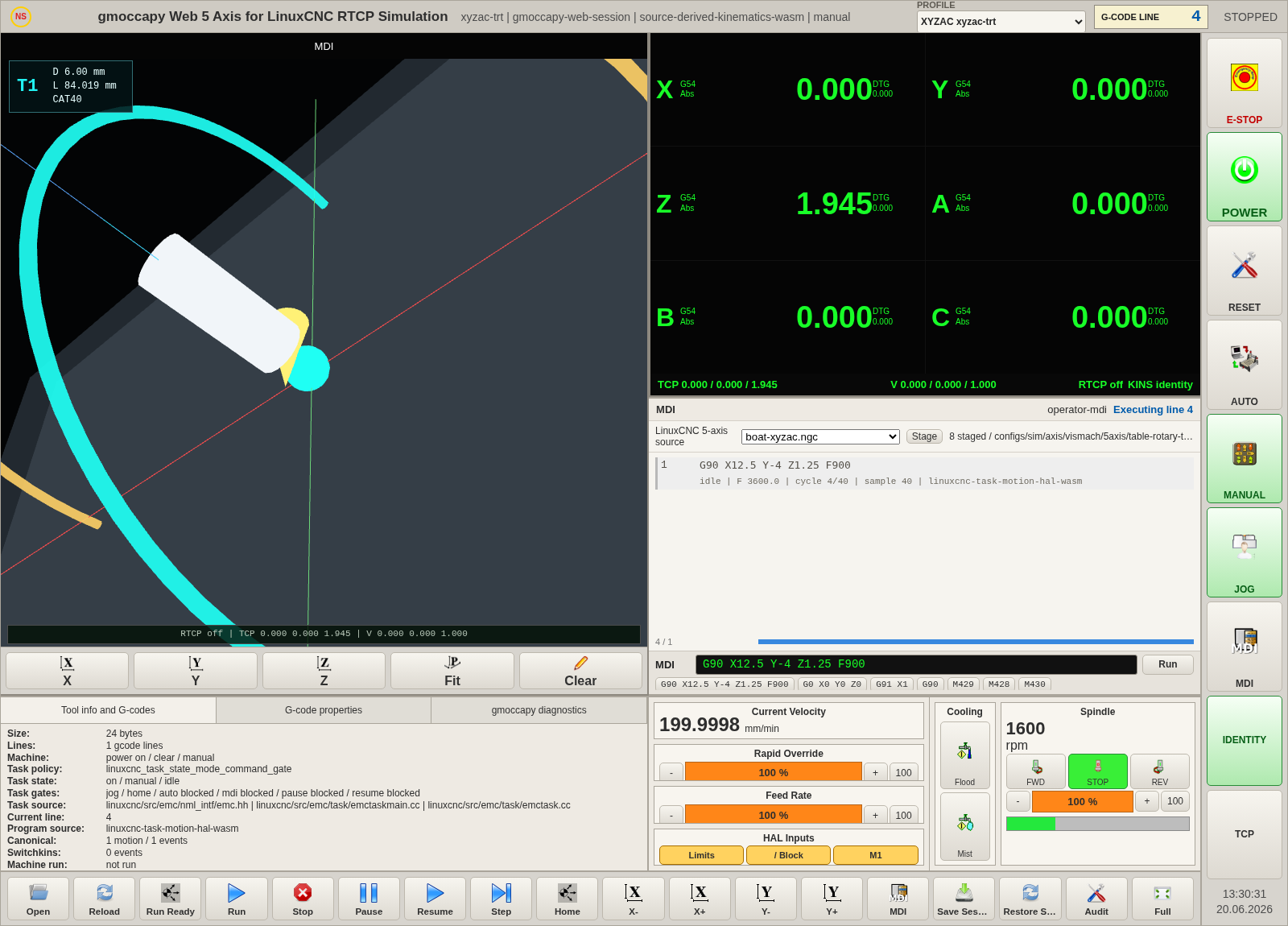

| feed-override-up | Feed + | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| feed-override-down | Feed - | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| feed-override-reset | Feed 100 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| spindle-override-up | Spindle + | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| spindle-override-down | Spindle - | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| spindle-override-reset | Spindle 100 | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| ignore-limits | Limits | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| block-delete | / Block | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| optional-stop | M1 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| spindle-forward | 主轴 FWD | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| spindle-reverse | 主轴 REV | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| spindle-stop | 主轴 STOP | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| toggle-flood | Flood | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| toggle-mist | Mist | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| SAVE_SESSION | Save Session | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| select-profile | 会话恢复前临时切换 profile | PASS | {"machineProfile":"xyzbc-trt","activeProgram":"configs/sim/axis/vismach/5axis/table-rotary-tilting/demos/xyzbc_switchkins.ngc","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0," |
| RESTORE_SESSION | Restore Session | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| FULL | Full 全屏状态切换 | PASS | {"before":{"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1. |
| AUDIT_FULL_BOUNDARY | Audit Full Boundary | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| GMOCAPY_HAL_PIN ignore-limits | 公开 API 写入 gmoccapy HAL pin | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
| GMOCAPY_NATIVE_PAGE file | 公开 API 切换 gmoccapy native file page | PASS | {"machineProfile":"xyzac-trt","activeProgram":"MDI","programSource":"operator-mdi","programExecutionSourceMode":"linuxcnc-task-motion-hal-wasm","runState":"stopped","activeLine":4,"machine":{"powerOn":true,"estopActive":false,"taskState":"on","mode":"manual","allHomed":true,"interpState":"idle","taskPaused":false,"mdiCommand":"G90 X12.5 Y-4 Z1.25 F900"},"axisPose":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"dro":{"x":0,"y":0,"z":1.94521,"a":0,"b":0,"c":0},"tcpPose":{"x":0,"y":0,"z":1.94521,"a": |
图文证据

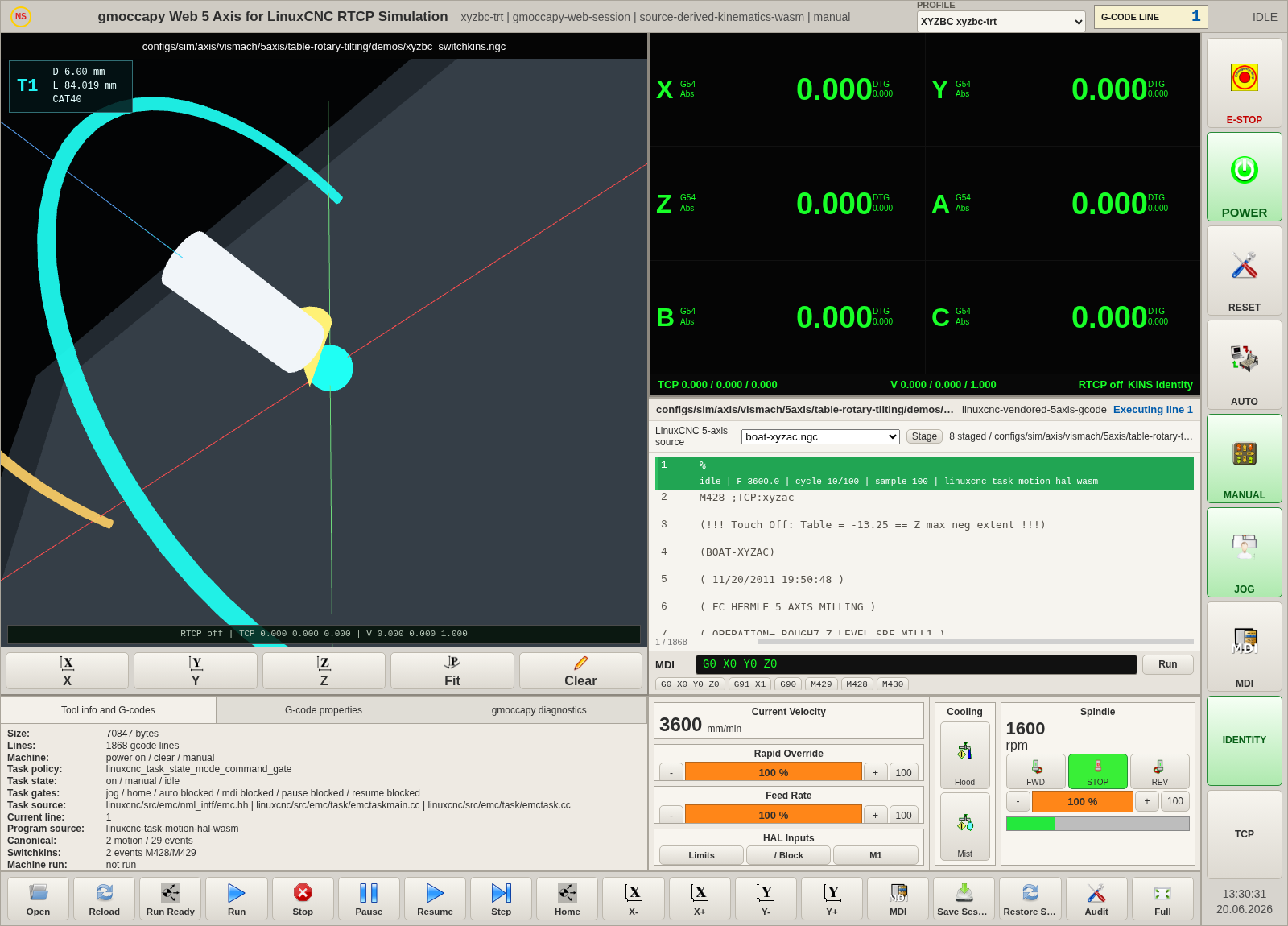

01-loaded-inventory 我打开主界面并记录按钮库存
